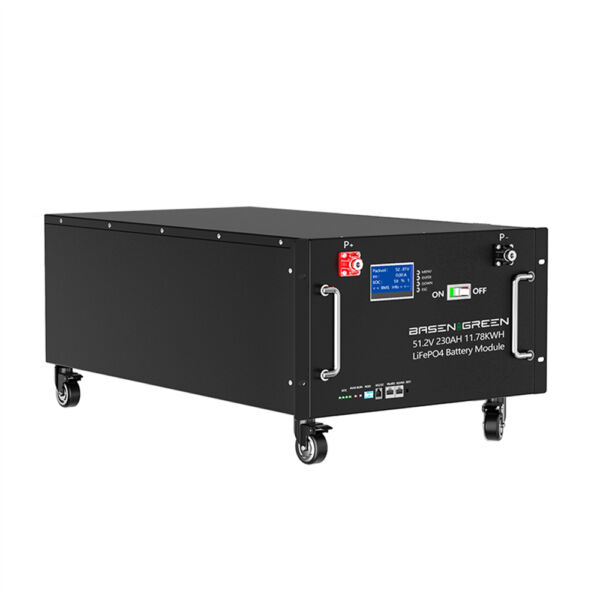

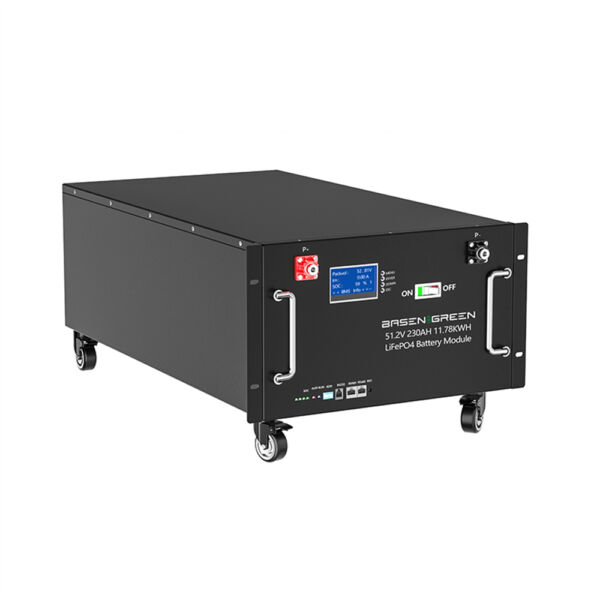

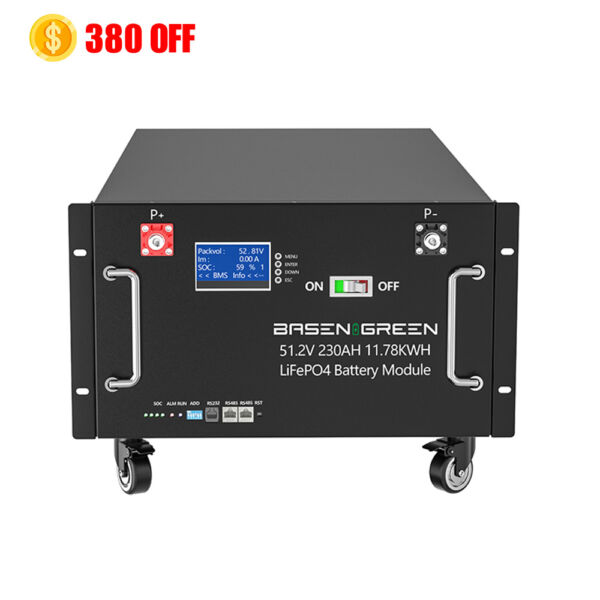

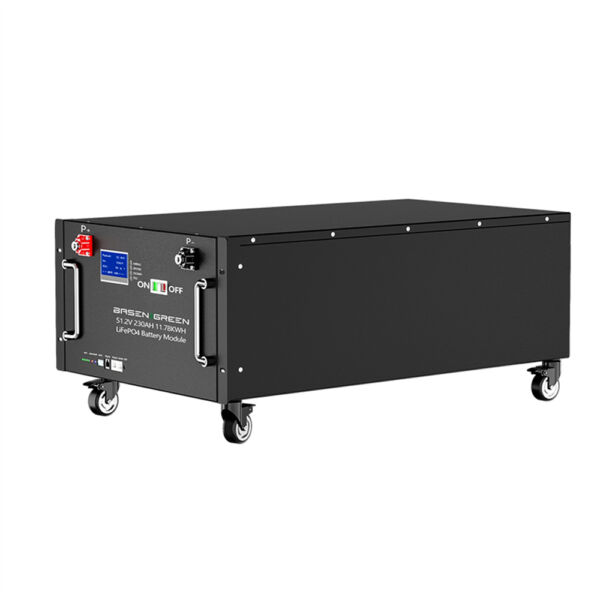

Including Shipping Basen 51.2V 48V 230ah LiFePO4 Battery Pack 6000 Times Cycles Ship From China
$2,710.00
Ship From China
SIZE: 618*248*480MM WEIGHT: APPROX. 116KG
CYCLE LIFE: 6000+ WARRANTY: 5 YEARS
※MAX. PARALLEL NUMBER: 15P COMMUNICATION FUNCTION: RS485/CAN
【11.776 kWh | 20 Days Uninterrupted Power Supply 】: Basen 48V 230Ah Lithium battery can power your home for up to 22 days without using any utility power (Ensure a daily electricity demand of 0.5kWh), allowing you to avoid grid outages.
【4X Charging Speed & 1/2 Space Saving】 : Equivalent to 4pcs 12V 230Ah LiFePO4 batteries in 4S, it greatly reduces charging time from 20hrs to 5hrs because it doesn’t need to be charged one by one and saves you half the space to do what you love.
【8× Longer Life | Save $11,000+ Bills】 : Basen 48V 230Ah Lithium battery provides 6000+ deep cycles & a 10-year lifetime and extends the battery lifespan by 8× more than the lead-acid batteries. With a lifespan of 70,656 kWh(6000 cycles×5.12kWh), it totally saves you more than $11,000 on electricity bills ($0.159/kWh).
【100% Protection | Using without Risk 】: Basen 48V 230Ah lithium battery builds in 200A BMS to protect from overcharging & discharging, over current, short circuit, and over temp. Green energy, non-toxic.
【176.64 kWh Max. Energy Expansion 】: Basen 48V 230Ah supports max 15P connection to reach up to 176.64 kWh , perfect for solar home systems, power outages, off-grid living, security or surveillance system, etc.
Description
In addition to the above countries, other countries and regions, please contact our sales staff to inquire separately, thank you！
Zusätzlich zu den oben genannten Ländern, anderen Ländern und Regionen wenden Sie sich bitte an unser Verkaufspersonal, um sich separat zu erkundigen, danke！
| Model | BR-48100A | BR-48230A | BR-48304A |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 230Ah | 304Ah |
| Energy | 5120Wh | 11776Wh | 15360wh |
| Series or Parallel Connection | 16S1P | 16S1P | 16S1P |
| Maximum Charge Current | 100A | 200A | 200A |
| Charge Current (-20 to – 10 ºC) | ≤0.05C | ≤0.05C | ≤0.05C |
| Recommended Charge Voltage | 56V-57.6V | 56V-57.6V | 56V-57.6V |
| BMS Charge Voltage Cut-Off | 57.6V (3.75±0.025vpc) | 57.6V (3.75±0.025vpc) | 57.6V (3.75±0.025vpc) |
| Reconnect Voltage | 54.6V (3.34 ±0.05vpc) | 54.6V (3.34 ±0.05vpc) | 54.6V (3.34 ±0.05vpc) |
| Dimensions (L x W x H) | 440*435*222mm (17.3×17.1×8.74”) | 480*248*618mm(18.9×9.8×24.3”) | 475*255*770mm(18.6x10x30.3”) |
| Weight | 70KG with wooden packing | 116KG with wooden packing | 145KG with wooden packing |
| Communication Interface | RS485 (Optional) | RS485 (Optional) | RS485/CAN (Optional) |
| Case Material | Metal | Metal | Metal |
| Enclosure Protection | IP54 | IP54 | IP54 |
| Maximum Continuous Discharge Current | 100A | 200A | 200A |
| BMS Discharge Current Cut-Off | 105A | 230A | 230A |
| Reconnect Voltage | 45V | 45V | 45V |
| Discharge Temperature | -20 to 60ºC (-4 to 140 ºF) | -20 to 60ºC (-4 to 140 ºF) | -20 to 60ºC (-4 to 140 ºF) |
| Charge Temperature | 0 to 45ºC (32 to 113 ºF) | 0 to 45ºC (32 to 113 ºF) | 0 to 45ºC (32 to 113 ºF) |
Additional information
| Weight | 116 kg |
|---|---|
| Dimensions | 48 × 24.8 × 61.8 cm |
| Capacity: | 230AH |
| Cycle life | >6000 Times |
| Warranty | 5 Years |
| Rechargeable | yeah |
| Weight | 55KG Battery+15KG BOX |
| Ship Area | Ship to DE, Ship to BE,NL,LU, Ship to FR, Ship to IT,ES, Ship to AT,DK,IE, Ship to GR,FI,EE,LT,LV,SE,PT, Ship to CS,PL,HU,HR,SL,SK,RO,BG |
