With the popularization of renewable energy and the increasing awareness of home energy independence, more and more American users are beginning to pay attention to efficient, safe, and DIY-assembled energy storage systems. The 51.2V 314Ah LiFePO4 DIY battery pack has become the preferred solution for home solar energy storage, RVs, off-grid systems, and other scenarios with its high capacity, long life, intelligent protection, and extremely high cost performance. This article will comprehensively analyze the technical advantages, assembly steps, and practical applications of this battery pack, and share real cases of local American users to help more users with energy storage needs make wise choices.

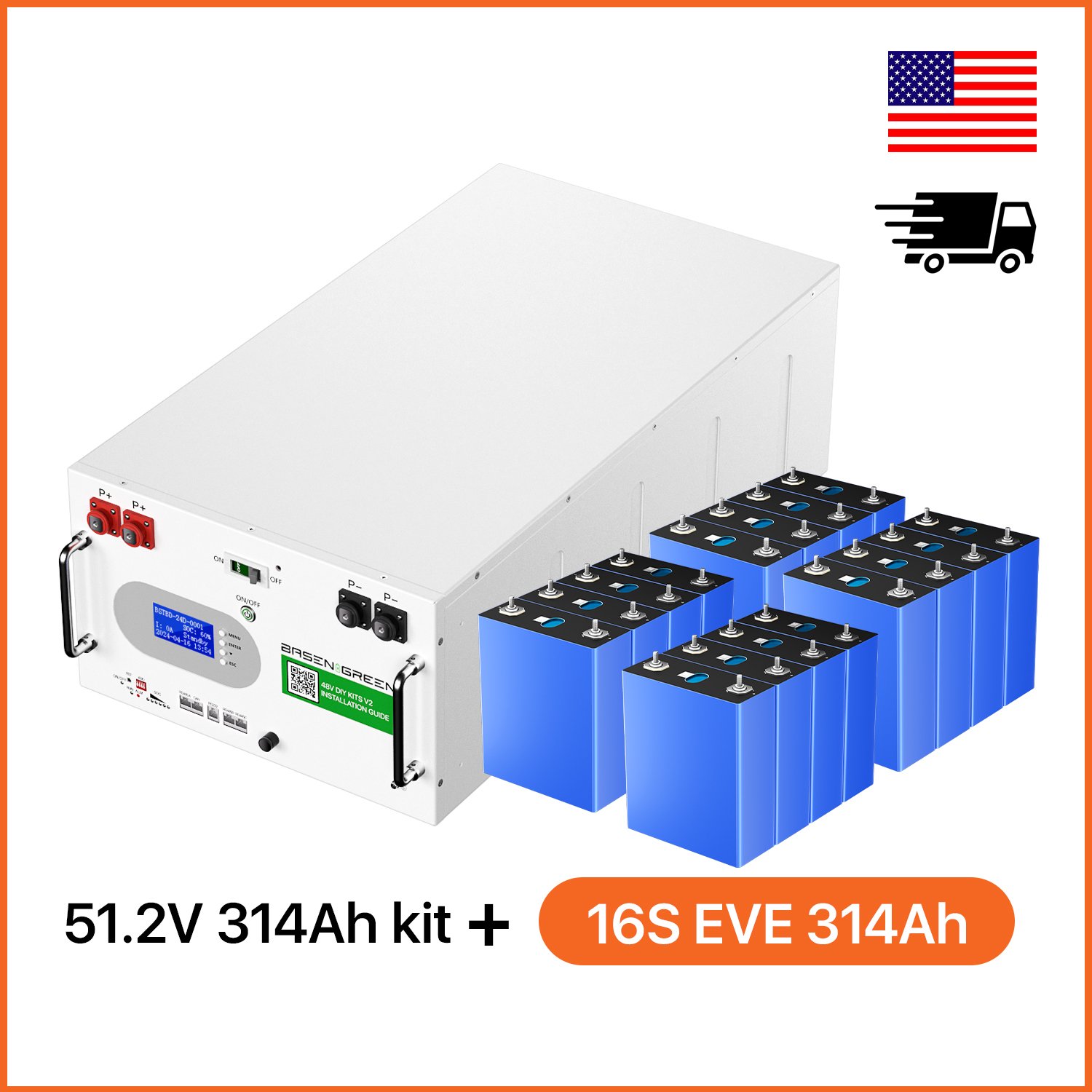

1. What is a 51.2V 314Ah LiFePO4 DIY battery pack?
**LiFePO4 (lithium iron phosphate)** is one of the most popular types of energy storage batteries currently. It is widely used in home, industrial, and mobile energy storage fields for its high safety, long cycle life, and deep discharge capability.
51.2V 314Ah means that the rated voltage of the battery pack is 51.2V, the capacity is as high as 314Ah, and the total energy is about 16kWh, which can meet the daily electricity demand of most families or the long-term off-grid operation of RVs.
Technical parameters at a glance
Battery brand: EVE (international first-line brand, quality assurance)
Battery type: lithium iron phosphate (LiFePO4)
Number of cells: 16 strings (16S)
Total capacity: 314Ah
Total energy: about 16kWh
BMS: with active balancing, Bluetooth, RS485/CAN communication
Assembly method: DIY, with a full set of installation accessories and instructions
Origin/warehouse: local spot in the United States, support 3-5 days fast delivery
2. Why choose DIY LiFePO4 battery pack?
1. High safety
The LiFePO4 chemical system itself has extremely high thermal stability and chemical stability, and is not easy to explode; with high-specification active balancing BMS, real-time monitoring of each string of battery voltage and temperature, greatly improving system safety.
2. Ultra-long life
The cycle life of high-quality EVE batteries can reach more than 6,000 times, far exceeding lead-acid and ternary lithium batteries, and can reach more than 10 years in daily use.
3. Large capacity and strong expansion
The 314Ah ultra-large capacity supports multiple sets of parallel connection, and can be easily expanded to 32kWh, 48kWh or even higher, meeting the needs of different home/commercial/RV/off-grid scenarios.
4. Better cost and high cost performance
The DIY assembly method greatly reduces the labor and brand premium. With the direct delivery of spot goods from the US warehouse, the price of the same capacity is far lower than that of commercial finished batteries at $1,699.
5. Intelligent monitoring and convenient operation
Equipped with a Bluetooth module, it supports mobile phone APP to view the voltage, total current, temperature, SOC and other information of each string in real time; RS485/CAN communication can be seamlessly connected with mainstream inverters.
3. Sharing of real cases of American customers
Case 1: Solar off-grid backup for California households
Customer background:
David is an environmentally friendly household user living in the suburbs of California. He installed a 6kW solar system at home. The original lead-acid battery pack had a small capacity, was difficult to maintain, and had a short life. In April 2024, David ordered a 51.2V 314Ah LiFePO4 DIY battery pack through the BASENGREEN official website.
Installation experience:
“I received the goods on the fourth day after placing the order. All parts were tightly packed and the accessories were complete. It took about 3 hours to assemble step by step according to the instructions. The BMS Bluetooth function is very easy to use, and the battery status can be checked on the mobile phone at any time. Now even if there is a power outage, the family can maintain basic electricity consumption for a whole day, and completely bid farewell to the troubles of lead-acid batteries.”
User feedback:
Daily solar power is directly supplied during the day, and batteries are used for backup at night
The battery cycle depth is generally 20~80%, and the expected life span can reach more than 10 years
Through BMS active balancing, the voltage of 16 strings of batteries is always consistent, safe and worry-free
Case 2: Florida RV upgrade and transformation
Customer background:
Mike is an RV enthusiast who drives across the United States all year round. The original RV battery pack has limited capacity and cannot support long-term operation of high-power appliances such as air conditioners and refrigerators. In May 2024, he chose BASENGREEN’s DIY battery pack for upgrade.
Installation and application:
“The whole installation process is simpler than I thought. All cables, screws and insulation boards are complete. What satisfies me most is the active balancing BMS and Bluetooth monitoring, which allows you to see the power consumption of the RV at a glance. Now you don’t have to worry about running out of power even if you camp in the wild for three days. The solar panel + large-capacity battery is a perfect combination.”
Usage scenarios:
Supports high-power equipment such as RV air conditioners, refrigerators, microwave ovens, etc.
The solar panel is charged during the day and can be used freely at night
The battery pack is compact and does not take up space when installed in the locker
IV. Detailed DIY assembly process (illustration)
1. Receipt and accessories inspection
Check whether the battery cells, BMS, LCD display, insulation board, screws, cables and other accessories are complete
Confirm that the battery cell voltage is consistent (the difference is recommended not to exceed 20mV)
2. Install insulation board and battery cells
Separate every two battery cells with 24 fiberglass insulation boards according to the instructions to ensure safety without short circuit risk
Place 16 EVE battery cells horizontally for subsequent installation
3. Connect the PCB busbar and the copper busbar
Use the matching flexible copper busbar and screws to connect the positive and negative poles of each string of cells in sequence
Tighten the screws with a torque wrench to ensure good contact (5-6Nm is recommended)
4. Install active balancing BMS
According to the BMS manual, insert the sampling lines into the PCB busbar in groups (note the distinction between B1-/B1+/B2+…B15+/B+)
Connect the temperature sensor and stick it on the surface of the cell
Connect the BMS main line to the positive and negative poles of the battery to ensure that there is no error
5. Install the LCD display and Bluetooth module
The LCD display is connected to the BMS through a dedicated cable
The Bluetooth module is inserted into the BMS dedicated interface for subsequent APP monitoring
6. Inspection and first charge
Use a multimeter to measure the total voltage (should be ≥52V). After confirmation, you can perform the first charge
Observe the BMS data during charging to ensure that the voltage of each string of cells is balanced
7. Fixed installation and access to the inverter
You can choose to mount it on the wall or on the floor, and use the matching expansion bolts to fix it
Connect the positive and negative poles of the battery according to the inverter manual, and connect the RS485/CAN communication line
V. Common application scenarios
1. Home solar energy storage
Photovoltaic power generation is used for personal use during the day, and the excess power is stored in the battery
Automatically switch to battery power supply at night or during power outages
Support parallel expansion to meet villa/small commercial scenarios
2. RV/camper energy storage
Compact size, suitable for installation in RV storage cabinets
Support high-power electrical appliances to improve RV comfort
Solar panels + large-capacity batteries to achieve true off-grid life
3. Small off-grid/emergency backup power supply
Remote areas, farms, construction sites and other scenarios without mains electricity
Power outage emergency backup to ensure the continuous operation of important equipment
Sixth, intelligent BMS and remote monitoring
Active balancing: real-time balancing of the voltage of each battery string to extend battery life
Bluetooth APP: Support iOS/Android, real-time viewing of voltage, current, SOC, temperature, etc.
RS485/CAN communication: compatible with mainstream inverters (such as Growatt, Victron, etc.), support parallel management
Multiple protections: multiple hardware protections such as overcharge, over-discharge, overcurrent, short circuit, high temperature, etc.
Seventh, FAQ
Q1: Is DIY assembly difficult? Do you need a professional electrician?
A: This product is equipped with detailed Chinese and English graphic instructions. Ordinary users can complete the assembly by following the steps without the need for a professional electrician background. If you have any questions, please contact customer service or refer to the official video tutorial.
Q2: How long can the battery pack last? Is it difficult to maintain?
A: EVE original battery cell, cycle life of more than 6000 times, normal use of more than 10 years. BMS comes with built-in balancing and protection, and is basically maintenance-free.
Q3: Which inverters are compatible?
A: It supports mainstream inverter brands on the market (such as Growatt, Victron, Solis, Deye, etc.), can be connected through RS485/CAN protocol, and supports parallel expansion.
Q4: How long does it take to receive the shipment from the US warehouse?
A: It is shipped from the local warehouse in the United States and can be delivered to the whole United States in 3-5 days, free postage, and supports 7 days of unconditional return and exchange.
Q5: How is after-sales and technical support guaranteed?
A: BASENGREEN provides a local after-sales team in the United States, online customer service, telephone, and email multi-channel technical support, 7 days of unconditional return and exchange, and lifelong technical service.
VIII. Conclusion and call for action
Choosing a 51.2V 314Ah LiFePO4 DIY battery pack is a wise choice for energy independence, green environmental protection, and smart energy storage life. Whether you are a home user, RV enthusiast or solar DIY player, this high-cost-effective battery pack with EVE brand battery cells and active balanced BMS will bring you an unprecedented experience.
