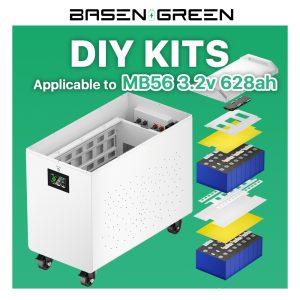

BASENGREEN 32kWh DIY LiFePO4 Battery Kit
Build a high-capacity 51.2V home energy storage battery using
16PCS EVE MB56 628Ah LiFePO4 cells.
The BASENGREEN DIY Kit integrates a JK 16S 300A Smart BMS,
LCD display, Bluetooth monitoring, communication interfaces,
internal power cables, insulation and battery mounting hardware
into one complete DIY battery platform.
|
32.15kWh
Nominal Energy
|
51.2V
Nominal Voltage
|
628Ah
Battery Capacity
|
16S
LiFePO4 System
|
Why Choose the BASENGREEN 32kWh DIY Kit?
| 32kWh-Class Capacity | 16 × EVE MB56 3.2V 628Ah cells create a 51.2V 628Ah battery with approximately 32.15kWh nominal energy. |
| JK 16S 300A Smart BMS | Integrated smart battery management with cell voltage monitoring, protection functions and inverter communication capability. |
| LCD + Bluetooth + PC | Monitor battery SOC, voltage, current, temperature and individual cell status through the front LCD, JK BMS App or PC software. |
| CAN / RS485 | Supports selectable inverter communication protocols for integration with multiple popular solar inverter platforms. |
| Complete DIY Platform | BMS, display, voltage sampling harness, communication cables, busbars, insulation materials and internal power cables are included in the DIY system. |

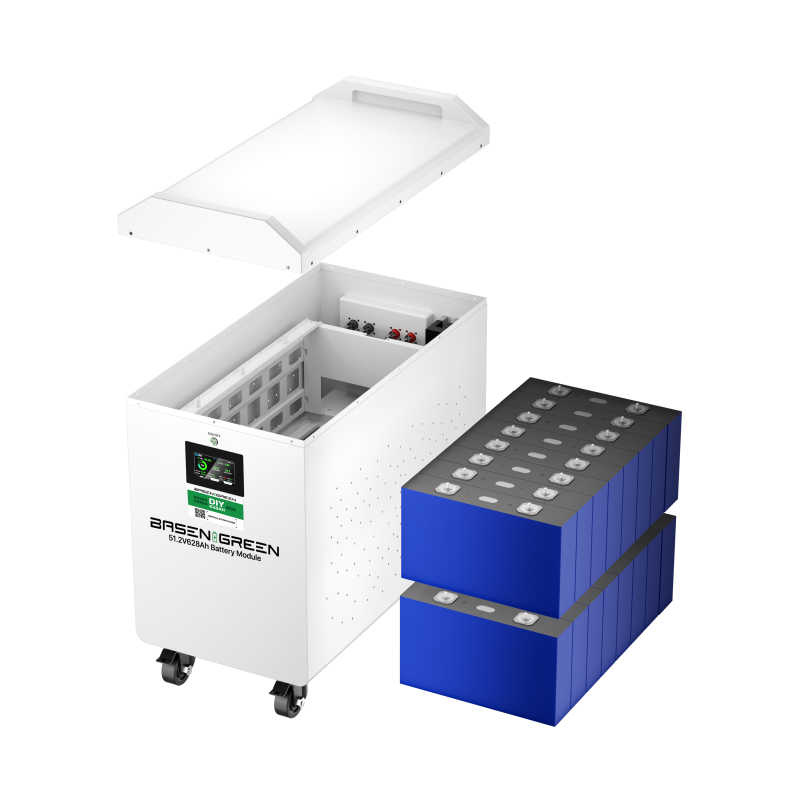

Powered by 16 × EVE MB56 628Ah Cells
The standard complete configuration uses sixteen high-capacity EVE MB56 LiFePO4 cells
connected in series to create a 51.2V battery system.

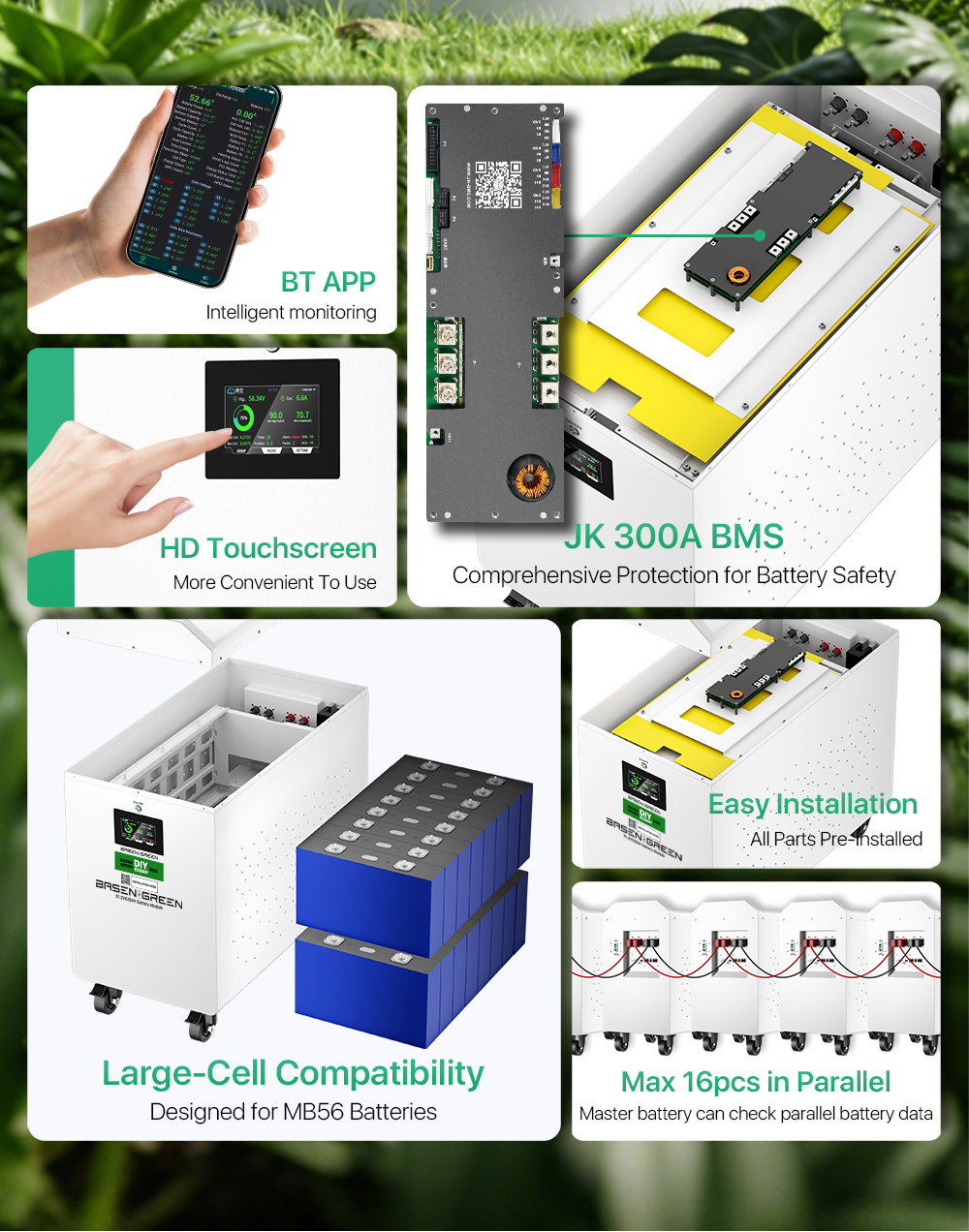

Smart JK 16S 300A Battery Management System
The BMS and LCD are pre-installed in the DIY enclosure, reducing wiring complexity
and providing multiple ways to monitor and configure the completed battery.

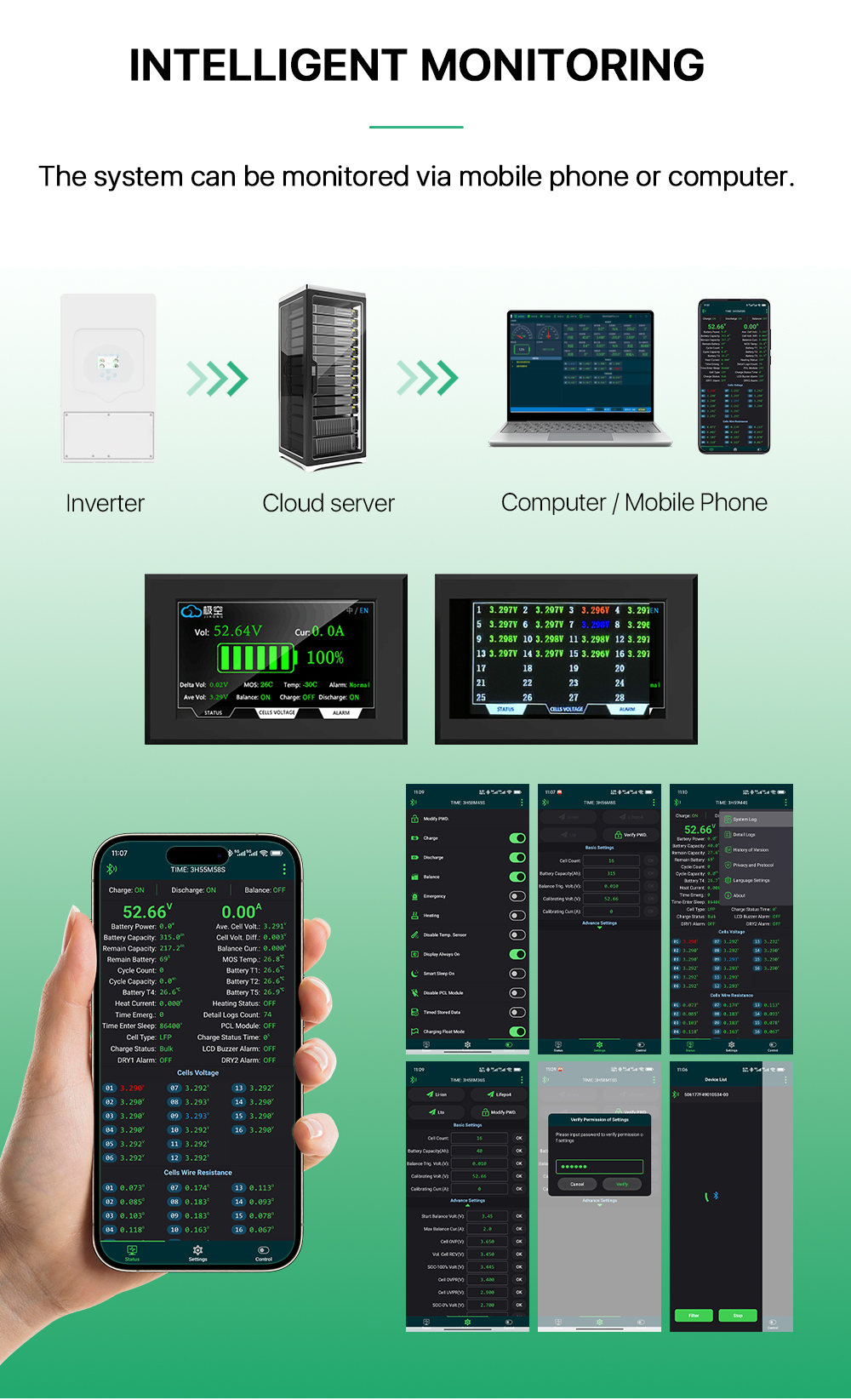

Front LCD Display Battery voltage, SOC, current, capacity and operating status can be viewed directly from the front panel. |
Bluetooth Monitoring Use the JK BMS App to view SOC, individual cell voltage, current, temperature and protection information in real time. |
PC Monitoring The supplied USB-RS485 cable allows PC connection for battery monitoring, commissioning and configuration. |
CAN / RS485 Inverter Communication
Communication protocols can be selected through the BMS interface.
The assembly manual provides communication options for multiple inverter platforms.
| Victron | Growatt | Deye | GoodWe | Pylontech |
| SRNE | MUST | SMA | INVT | SOFAR |
* Communication compatibility depends on the inverter model, firmware and communication protocol.
Please confirm compatibility before installation.
Designed for Clear DIY Assembly
| Step | Assembly Stage | Key Requirement |
|---|---|---|
| 01 | Check Cell Voltage | Measure all cells before installation. Cell voltage difference should be ≤20mV. |

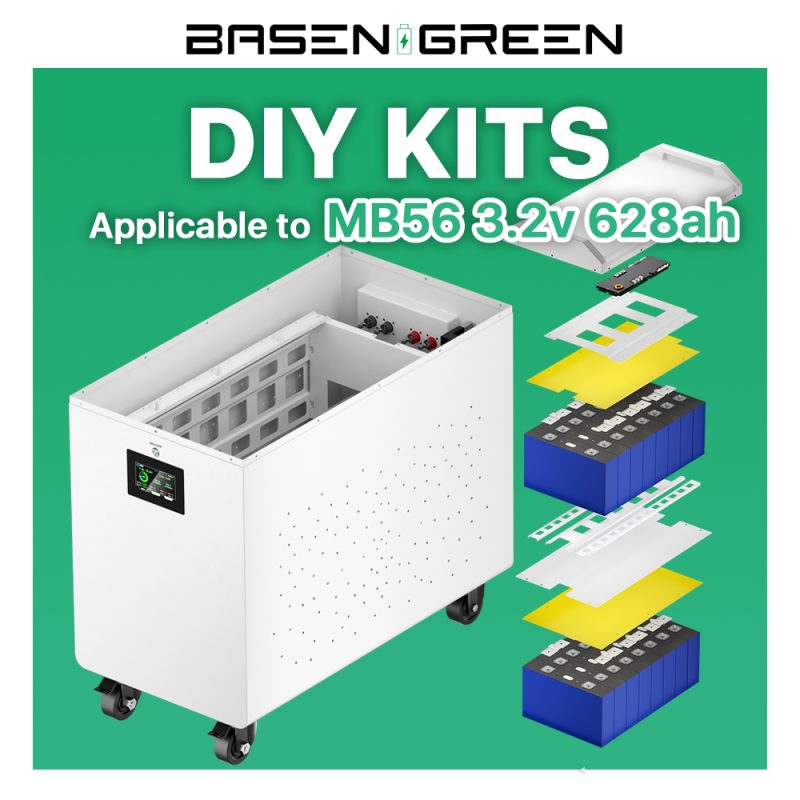

| 02 | Install the Cells | Install 16 cells in the dual-layer 8 + 8 arrangement with fiberglass insulation. |
| 03 | Busbars & Sampling Wires | Install busbars, power cables and voltage sampling wires following the assembly diagram. |
| 04 | Terminal Tightening | Recommended M8 terminal tightening torque: 10–12N·m. |
| 05 | Connect the BMS | Connect P- before B-. Connect voltage sampling connectors in the required A → B → C → D order. |
Incorrect cell polarity or BMS sampling-wire sequence may damage the battery system.
Please follow the complete assembly manual before powering on the battery.
Technical Specifications
| 51.2V 628Ah Battery System | |
|---|---|
| Battery Chemistry | LiFePO4 |
| Cell | 16 × EVE MB56 628Ah |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 628Ah |
| Nominal Energy | Approx. 32.15kWh |
| BMS | JK 16S 300A Smart BMS |
| Monitoring | LCD / Bluetooth / PC Software |
| Communication | CAN / RS485 |
EVE MB56 628Ah Cell Specifications
| Manufacturer | EVE | Model | MB56 628Ah |
| Typical Voltage | 3.2V | Typical Capacity | 628Ah |
| AC Impedance | ≤0.10mΩ | Cycle Life | 8000 Cycles |
| Standard Charge / Discharge | 0.5C / 0.5C | Recommended SOC | 10%–90% |
| Charge Cut-off | 3.65V | Discharge Cut-off | 2.5V |
| Charge Temperature | 0℃–60℃ | Discharge Temperature | -30℃–60℃ |
| Cell Dimensions | 352.3 × 71.7 × 205mm | Cell Weight | Approx. 11.5kg |
| Certification | UL / MSDS / UN38.3 / CE | Warranty | 5 Years |
What’s Included in the DIY Kit?
| Component | Included |
|---|---|
| Battery Enclosure & Cover | Yes |
| JK 16S 300A BMS | Pre-installed |
| LCD Display | Pre-installed |
| 16S Voltage Sampling Cable Set | Included |
| Inverter Communication Cable | Included |
| USB-RS485 Cable | Included |
| Busbars / Power Cables / Hardware | Included |
| Fiberglass Insulation Plates | Included |
Build Your 32kWh Battery with BASENGREEN
Need help confirming EVE MB56 cells, inverter protocol or system configuration?
Contact BASENGREEN before ordering and our team can help verify your setup.
