More Protection. Better Winter Performance.
The V3 is designed to go beyond conventional indoor-only
residential battery installations.

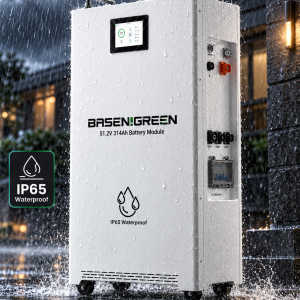

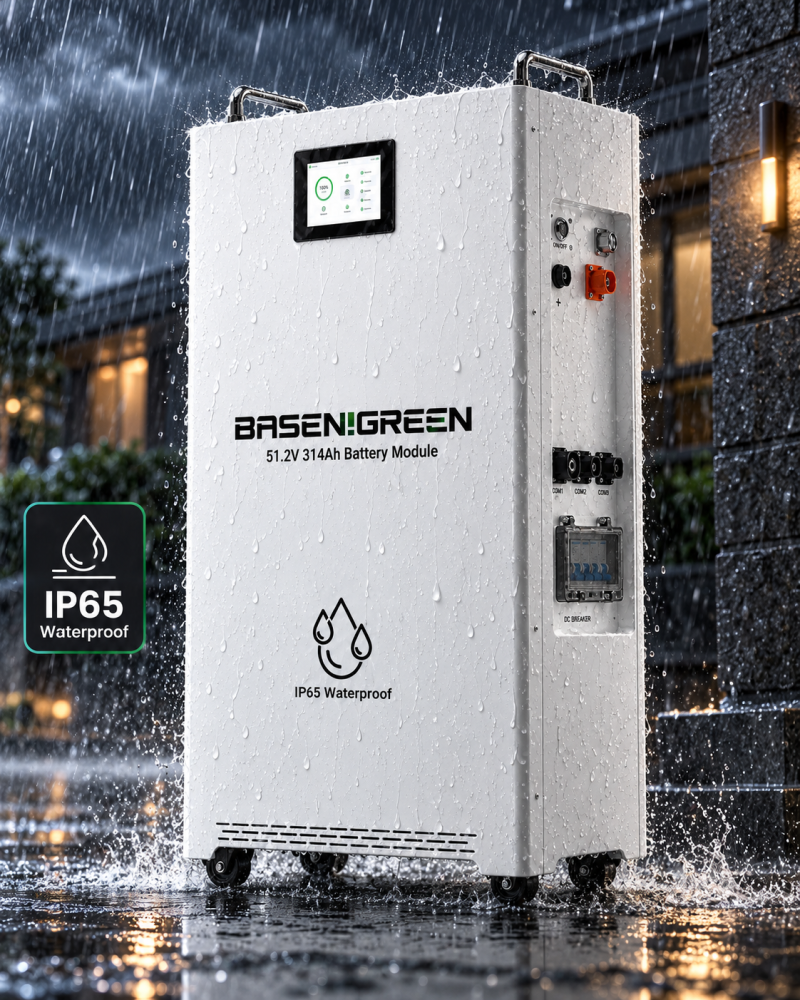

IP65 Waterproof Protection
The upgraded IP65-rated enclosure provides
enhanced resistance against dust and water ingress,
giving installers greater flexibility when selecting a suitable
battery installation environment.
and other more demanding installation environments.
Integrated Heating Feature
The integrated heating system improves usability in
low-temperature environments and helps make the V3 a stronger
choice for cold-climate residential energy storage.
-20°C to 60°C.
Designed Around Real Home Energy Needs
200A High-Power Performance
Handles demanding residential loads including HVAC,
heat pumps, motors and high-power inverters.
5A Active Balancing
High-current active cell balancing helps maintain more
consistent cell voltage during long-term operation.
Smart BMS Protection
Intelligent monitoring and protection for charging,
discharging and everyday system operation.
Built-in Air Breaker
Integrated protective circuit breaker improves system
isolation and servicing convenience.
Fire Protection Design
Multiple safety measures are integrated into the system
for improved protection and peace of mind.
5-Inch Touch Screen
Multi-language touch interface provides convenient local
battery monitoring and control.
Bluetooth & Wi-Fi APP
Check battery status and operating information from a
compatible mobile device.
Wheels + Handles
Practical floor-mounted design makes positioning and
servicing easier for installers.
YW314 LiFePO4 Cells
High-capacity 314Ah LFP cell platform for stable
residential energy storage.
⚡ Up to 200A Charge / Discharge Current
Designed for modern residential systems where both energy
capacity and high output capability matter.
Heat Pumps
HVAC
Well Pumps
Power Tools
High-Power Inverters
🔗 Wide Inverter Compatibility
RS485 and CAN communication make the V3 suitable for integration
with many popular residential energy storage inverter platforms.
DEYE
Victron
Growatt
Solis
Sofar
GoodWe
↕️ Expandable Energy Storage
Support for up to 16 batteries in parallel
allows the system to grow with your future energy requirements.
8,000 Cycle Life
Rated at 8,000 cycles @ 80% DoD,
25°C / 0.5C for dependable long-term residential
energy storage.
10-Year Warranty
Long-term BASENGREEN warranty support provides additional
confidence for residential energy storage investment.
Best-Fit Applications
Whole-Home Backup
Solar Self-Consumption
Cold-Climate Storage
Demanding Environments
Peak Shaving
Off-Grid Systems
Technical Specifications
| Specification | BR-OWPH-5116-V3 |
|---|---|
| Battery Chemistry | LiFePO₄ |
| Rated Voltage | 51.2V |
| Capacity | 314Ah |
| Nominal Energy | 16,076Wh / 16.08kWh |
| Operating Voltage | 43.2–57.6V |
| Max. Charge / Discharge Current | 200A |
| Cycle Life | 8,000 Cycles @ 80% DoD |
| Protection Level | IP65 Waterproof |
| Heating Feature | Integrated Heating |
| Active Balancing | 5A |
| Communication | RS485 / CAN |
| APP Monitoring | Bluetooth & Wi-Fi |
| Touch Screen | 5-Inch Multi-Language Display |
| Parallel Connection | Up to 16 Units |
| Charge Temperature | -20°C to 60°C |
| Discharge Temperature | -20°C to 60°C |

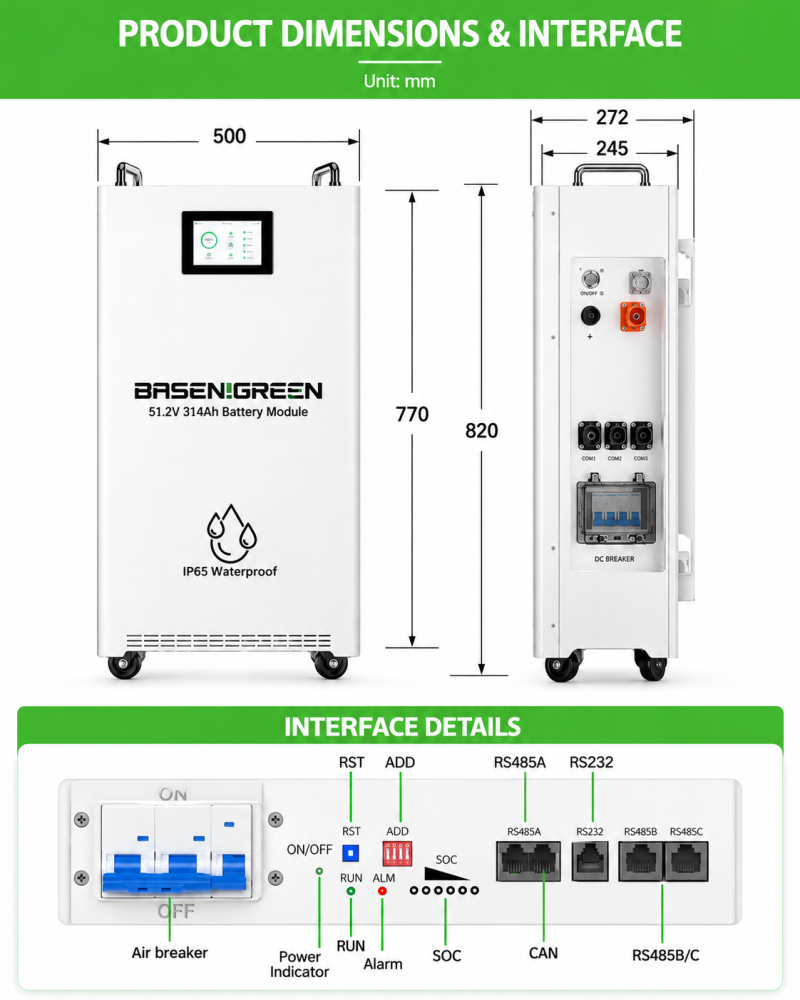

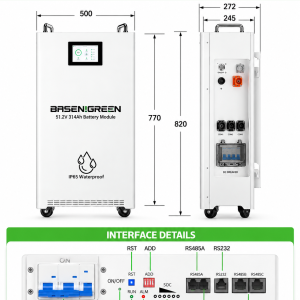

| Datasheet Dimensions | 855.5 × 500 × 282mm |
| Approx. Weight | 128kg |
| Compatible Inverters | DEYE, Victron, Growatt, Solis, Sofar, GoodWe, etc. |
| Warranty | 10 Years* |
whichever comes first.

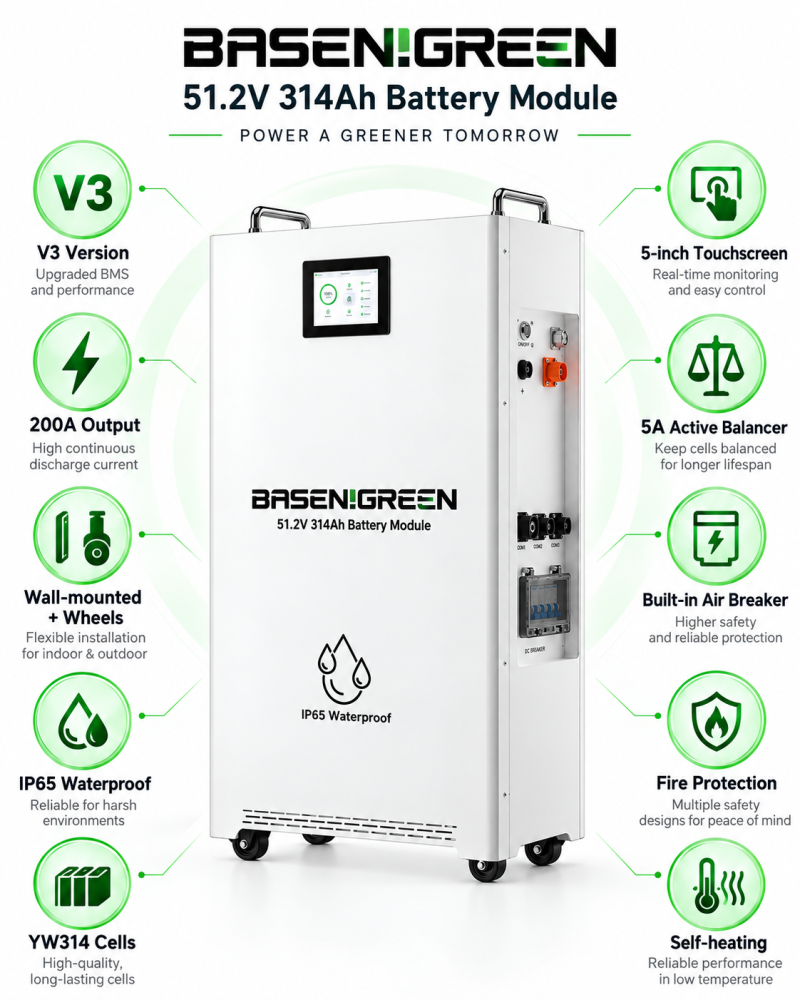

More Than Just a 16kWh Battery.
IP65 environmental protection, integrated heating,
200A performance, 5A active balancing, smart BMS,
built-in breaker, fire protection, 5-inch touch control,
APP monitoring and scalable storage —
all integrated into one next-generation home energy platform.
